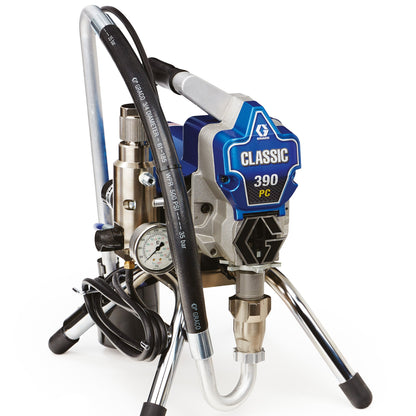

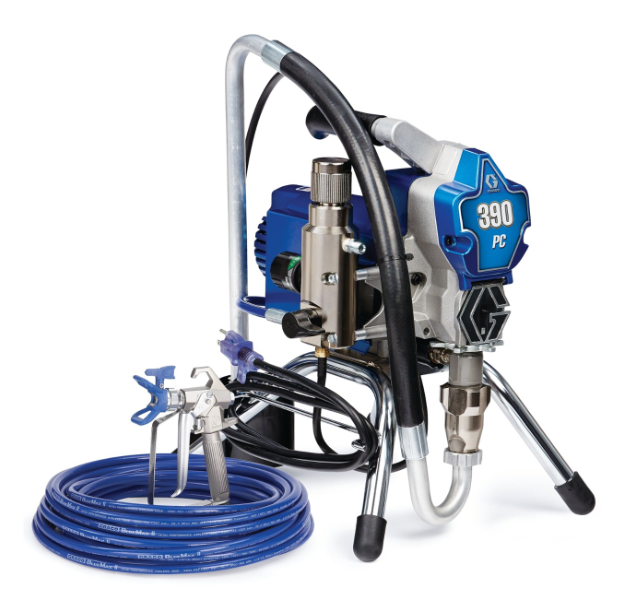

Graco Classic 390 PC Electric Airless Sprayer, Stand, 230V, CE
Graco Classic 390 PC Electric Airless Sprayer, Stand, 230V, CE
Regular price
₱180,000.00 PHP
Regular price
Sale price
₱180,000.00 PHP
Unit price
per
Couldn't load pickup availability
The CLASSIC 390 PC Stand is a solid workhorse built for the professional just “starting out.” Lightweight and portable, it's easy to lift and carry. The CLASSIC 390 PC is the ideal sprayer for residential jobs, and is the best value in small electric sprayers.
Technical Specifications:
| Compatible Material | Primers, Stains, Acrylics, Enamel, Latex, Interior Paint |
|---|---|
| Compatible Replacement Pump | 17C489 |
| Convertible | Non-Convertible |
| Engine Size (kW) | 0.47 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Frequency (Hz) | 50 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | FTX-E 4-Finger Gun, Filters (Gun + Manifold), BlueMax II Hose 1/4 in. x 15 m, RAC X Tip and Guard |
| Maximum Flow Rate (L/min) | 1.8 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 15 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3000 |
| Minimum generator power (kW) | 0 |
| Model | Classic |
| Motor Type | TEFC DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 47 |
| Overall Height (mm) | 469.9000 |
| Overall Length (cm) | 40.6 |
| Overall Length (mm) | 406.4 |
| Overall Width (cm) | 35.6 |
| Overall Width (mm) | 355.6000 |
| Phase | 1 |
| Power Rating (kW) | 0.46 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 1.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Region plug type | EU region (type C, E & F plug) |
| Series | 390 PC |
| Spray Gun Type | FTX gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume per Cycle (cycles/gal) | 700 |
| Weight (kg) | 14 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
