BAESA COLORS PAINT CENTER

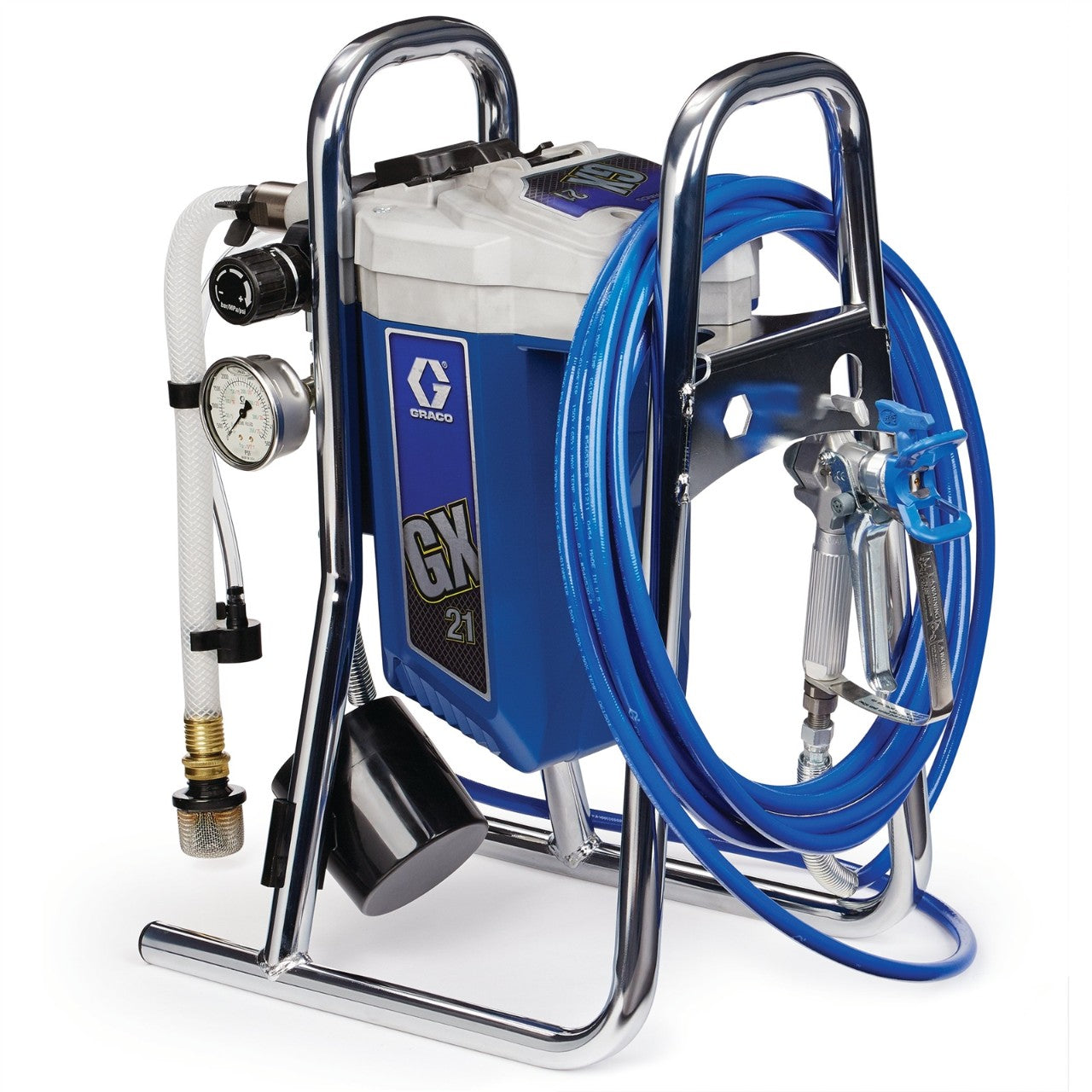

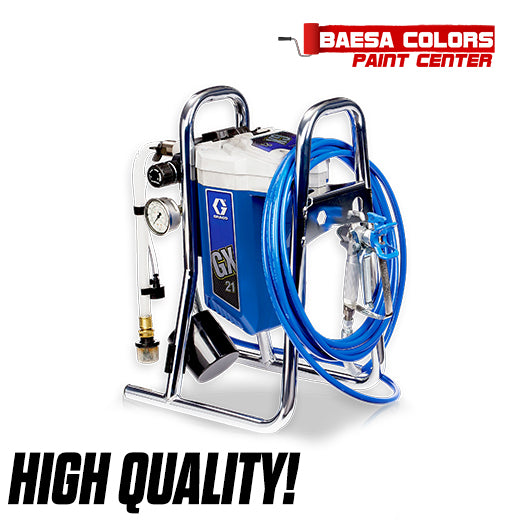

GRACO 17G183 SPRAYER, GX 21, STAND, 230V CEE

GRACO 17G183 SPRAYER, GX 21, STAND, 230V CEE

Regular price ₱120,000.00 PHP
Regular price Sale price ₱120,000.00 PHP
Sale Sold out
Size

GX 21 is the fast, portable and affordable solution for small finishing jobs every finishing contractor faces. Graco's proven piston pump and RAC X SwitchTip quickly lay down a smooth finish. The ProXChange Pump provides fast on-the-job pump replacement – no tools required.

Technical Specifications:

Compatible Material Primer, Stains, Water-Based Paint, Acrylics, Enamel, Latex
Compatible Replacement Pump 24Y472
Convertible Non-Convertible
Filter Mesh Size 60
Fluid Hose Inside Diameter (in) 1/4
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration DI stand
Frequency (Hz) 50
Gun Included 1
Hose Diameter (in) 1/4
Hose Inlet Diameter (cm) 0.635
Hose Inlet Diameter (in) 1/4
Hose Inlet Diameter (mm) 6.35
Includes SG3 Spray Gun with Four-Finger Trigger, RAC X SwitchTip, LP 517 and FFLP310 Guard, 1/4 in x 15 m Duraflex Hose, 60-Mesh Gun Filter
Maximum Flow Rate (L/min) 1.8
Maximum Fluid Working Pressure (psi) 3000
Maximum Hose Length (m) 15
Maximum Operating Temperature (°C) 46
Maximum Sound Pressure Level (dB(A)) 83
Maximum Tip Size (in) 0.021
Maximum Tip Size 1 Gun (in) 0.021
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Maximum Working Pressure (kg/cm²) 210.9
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 3500
Minimum Operating Temperature (°C) 4
Minimum generator power (kW) 0.5
Model GX
Motor Type Electric
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 55.9
Overall Height (mm) 558.8000
Overall Length (cm) 46.7
Overall Length (mm) 467.36
Overall Width (cm) 30.5
Overall Width (mm) 304.8000
Phase 1
Power Source Electric
Pump Mount Type ProXchange
Pump Rod Type Carbon Steel
Pump Type ProX Piston Pump
Region plug type EU region (type C, E & F plug)
Series 21
Spray Gun Type SG3 - spray gun
Spray Type Airless
Type Airless Sprayer
Voltage (V) 230
Weight (kg) 13
Wetted Material Stainless Steel, Brass, Leather, UHMWPE, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer
